PREMIUM PRIMER & SEALER SPRAY GUN

WS-PRIMER

Q&A

What is the difference between a WS-Primer and any other spray gun?

The WS-Primer is Anest Iwata’s first offering of a dedicated Primer spray gun. It was designed around the Anest Iwata’s patented Split Nozzle Technology which allows for highly fine-tuned atomisation for specific application types. In the case of the WS-Primer the atomisation is optimized for working best with primer materials such as filler or wet on wet surfacers. It helps greatly to reduce processing and application times while ensuring unrivalled process safety and highest quality results.

What is the advantage of a Wet-on-Wet workflow over a traditional Filler workflow?

Wet-on-Wet workflows are optimized for efficiency. They eliminate the additional effort of sanding the Filler after its curing and enable you to proceed directly with the base coat. This allows for substancial cost savings.

How can I improve the performance of my Anest Iwata spray gun?

Just like almost any other tool used professionally, spray guns might suffer from wear. On these pages we are providing you with the most common maintenance processes required to keep your Anest Iwata spray gun performing best.
In case you encounter specific issues please refer to the “Troubleshooting” document first. This document will then guide you to the corresponding maintenance guide which guides you through the steps.

How do I choose the right product for my needs?

Anest Iwata has a wide variety of different products for different applications. Our tools are highly specialized for specific use-cases and the homepage www.anest-iwata-coating.com provides you with a good overview of recommended tools per application type. However, we still highly recommend consulting one of our authorised resellers before purchasing. With this we can ensure that you will try and purchase the right tool for your requirements and will be happy with your new Anest Iwata spray gun.

Guides & Tutorials

QUICK START

9 Steps

Unboxing & Set Up

1

Unboxing

Unpack the spray gun and make sure that the product has not been damaged during transportation and that all the contents are included the packaging.

2

CLEAN & CONNECT

*Clean the fluid passages of the gun before the first use to remove any residue of oil. (*Refer to Cleaning Guide)

  1. Connect Pressure Gauge and/or air nipple to the air inlet port of the gun.
  2. Firmly assemble the gravity cup to the spray gun fluid nipple.
  3. Firmly connect the air hose to the air inlet pressure of the gun.



3

WEAR PROTECTIVE GEARS

During all fases of setup and operation procedures, always wear proper body and respiratory protection such as:

Anest Iwata safety glasses, mask and gloves.

  • 9 Steps

    Unboxing & Set Up

    LEARN MORE
  • 7 Steps

    Cleaning Guide

    LEARN MORE
  • 14 Steps

    Maintenance

    LEARN MORE

Troubleshooting

Spare parts

Choose
GRAVITY CUP 3 Items
NOZZLE & AIR CAP 4 Items
TRIGGER 3 Items
1 Item
1 Item
NEEDLE PACKING 2 Items
AIR VALVE 7 Items
PC-G600P-2 Gravity Cup
140081A0
Lid
940222A0
Non Drip
940221A0
Air Cap Set WS-Primer
930769A0
NOZZLE NEEDLE SET
3 Items
Air Cap Ring WS-Primer (Black)
930508A0
Air Cap Packing Set (2pcs.)
93017700

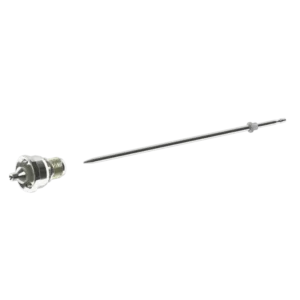

Nozzle Needle Set 1.4 WS-Primer
930774A0
Nozzle Needle Set 1.6 WS-Primer
930776A0
Nozzle Needle Set 1.8 WS-Primer
930777A0
Trigger
930510A0
Trigger Screw
960081A0
Trigger Stud
93001870
Pattern Adjustment Set
930685A0
Air Adjustment Set
930684A0
Self Adjusting Needle Packing
93001410
Needle Packing Assembly
93810620
Air Valve Shaft
93001790
Air Valve Seat Set V2
930789A0
Air Valve
93001690
Air Valve Spring
93001700
Fluid Adjustment Guide Set
930700A0
Fluid Needle Spring
93002820
Fluid Adjustment Knob (Black)
930682A0
GRAVITY CUP 3 Items
NOZZLE & AIR CAP 4 Items
TRIGGER 3 Items
1 Item
1 Item
NEEDLE PACKING 2 Items
AIR VALVE 7 Items
PC-G600P-2 Gravity Cup
140081A0
Lid
940222A0
Non Drip
940221A0
Air Cap Set WS-Primer
930769A0
NOZZLE NEEDLE SET
3 Items
Air Cap Ring WS-Primer (Black)
930508A0
Air Cap Packing Set (2pcs.)
93017700
Nozzle Needle Set 1.2 WS-Primer
930772A0
Nozzle Needle Set 1.3 WS-Primer
930773A0
Nozzle Needle Set 1.4 WS-Primer
930774A0
Trigger
930510A0
Trigger Screw
960081A0
Trigger Stud
93001870
Pattern Adjustment Set
930685A0
Air Adjustment Set
930684A0
Self Adjusting Needle Packing
93001410
Needle Packing Assembly
93810620
Air Valve Shaft
93001790
Air Valve Seat Set V2
930789A0
Air Valve
93001690
Air Valve Spring
93001700
Fluid Adjustment Guide Set
930700A0
Fluid Needle Spring
93002820
Fluid Adjustment Knob (Blue)
930806A0

Documents

Document name
Format
Size
Actions
Instruction manual
PDF
2.1 MB
Document name
Format
Size
Actions
Brochure
PDF
13.8 MB
Document name
Format
Size
Actions
Cleaning Guide
PDF
1.6 MB
Maintenance Guide
PDF
1 MB
Setup Guide
PDF
1.5 MB
