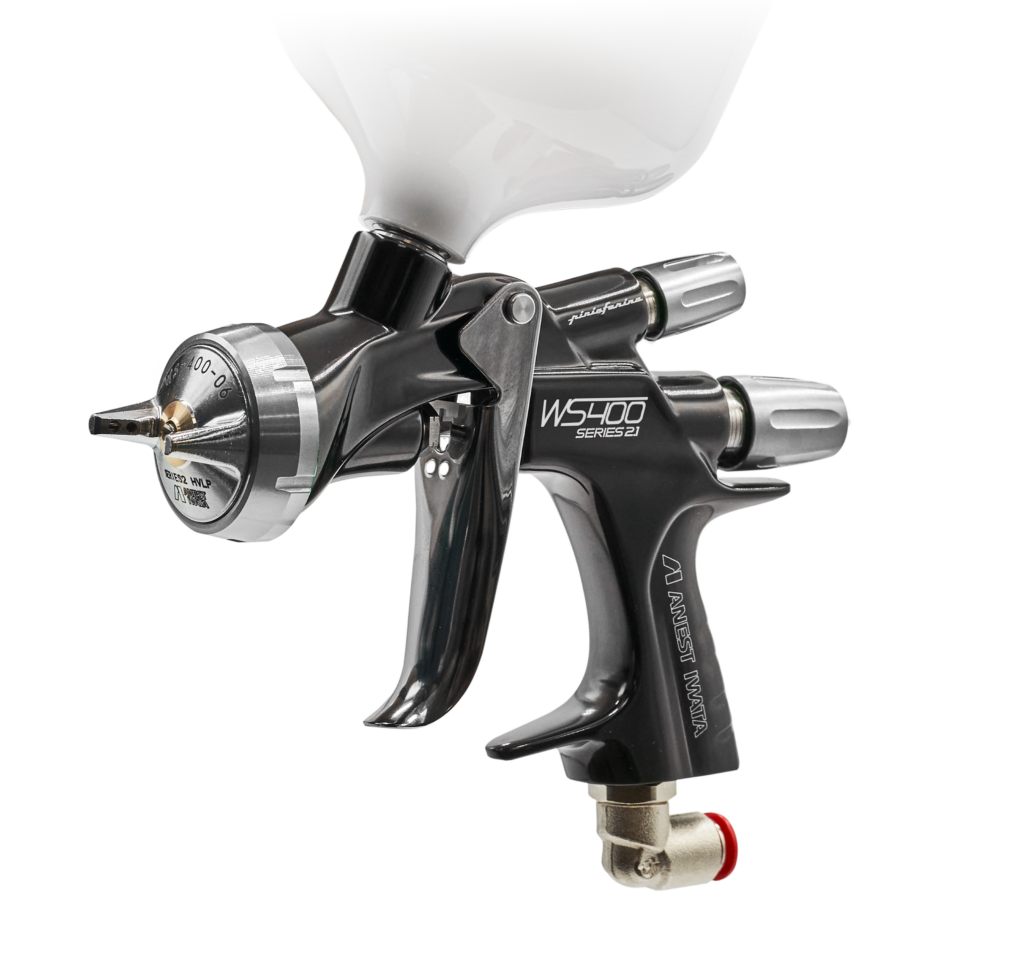

SPRAY GUN FOR ROBOT APPLICATION
WS-400 SERIES 2.1 For Robot Application
Q&A
Which robots are compatible with the Series 2.1 For Robot Application spray gun?
Official integration kits featuring custom mounting templates are currently available for two robot models:
-
Paint Go
-
Curve Robot
What are the main differences between the standard Series 2.1 range and the Series 2.1 for Robot Application?
At their core, there is zero difference in atomization technology and performance. Both versions share the exact same internal fluid dynamics, high-transfer efficiency, and superior finish quality that define the Series 2.1 range.
Can the Series 2.1 for Robot Application be installed on any robotic arm?
No. The Series 2.1 spray gun cannot be mounted universally on any system out of the box, as installation requires specific mounting hardware designed for the robot’s arm configuration.
Currently, official integration kits equipped with dedicated mounting masks are exclusively available for Paint Go and Curve Robot.
Troubleshooting
Spare parts
Choose
NOZZLE & AIR CAP
4
Items
GRAVITY CUP
3
Items
NEEDLE PACKING
1
Item
TRIGGER
3
Items
PATTERN ADJUSTMENT
3
Items
AIR VALVE
8
Items

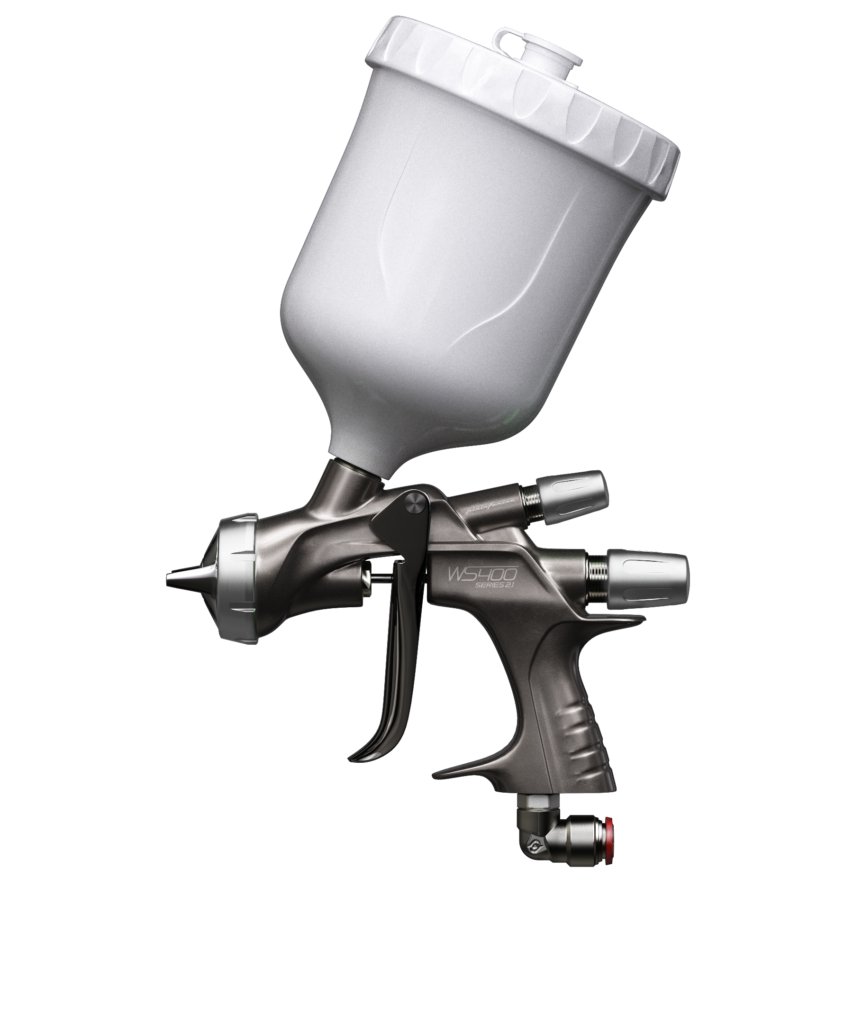

AIR CAP SET WS-400 CLEAR
93009030
NOZZLE NEEDLE SET
4 Items
AIR CAP RING CLEAR
93009050
AIR CAP PACKING SET (2PCS.)
93018310 1.2 HD NOZZLE NEEDLE SET
93009140 1.3 HD NOZZLE NEEDLE SET
93009060 1.4 HD NOZZLE NEEDLE SET
93009160 1.5 HD NOZZLE NEEDLE SET
93009180
PC-G600P-2 Gravity Cup
140081A0
Lid
940222A0
Non Drip
940221A0
NEEDLE PACKING ASSEMBLY
93810620
Trigger
93008890
Trigger Stud
93505860
E Stopper
96612025
Pattern Adjustment Set
93008420
Pattern Adjustment Knob Clear (Grey)
93009120
Torx Countersunk Screw
930812A0
Air Valve Shaft
93001790
Air Valve Seat Set
930789A0
Air Valve
93001690
Air Valve Spring
93001700
Fluid Adjustment Guide Set
93008840
Fluid Needle Spring
93002820
Fluid Adjustment Knob Clear (Grey)
93009130 Torx Countersunk Screw
930812A0
NOZZLE & AIR CAP
4
Items
GRAVITY CUP
3
Items
NEEDLE PACKING
1
Item
TRIGGER
3
Items
PATTERN ADJUSTMENT
3
Items
AIR VALVE
8
Items

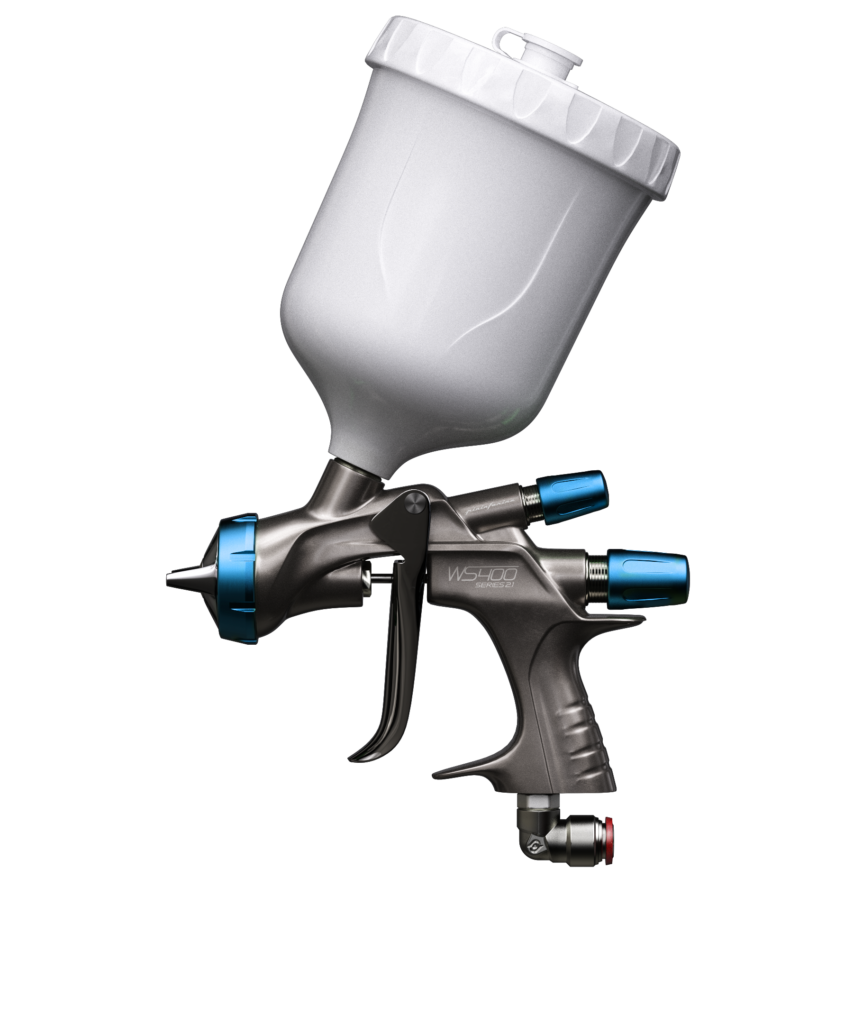

AIR CAP SET WS-400 BASE
2 Items NOZZLE NEEDLE SET
6 Items
AIR CAP RING BASE (Blue)
93008060 AIR CAP PACKING SET (2PCS.)
93018310 AIR CAP SET OBS
93008310 AIR CAP SET BF
93018140 1.3 OBS-0 NOZZLE NEEDLE SET
93008930 1.3 OBS NOZZLE NEEDLE SET
93008340 1.3 OBS+1 NOZZLE NEEDLE SET
93008990 BF-S NOZZLE NEEDLE SET
93018150 BF-40 NOZZLE NEEDLE SET
93021390 BF-14HD NOZZLE NEEDLE SET
93009160 PC-G600P-2 Gravity Cup
140081A0 Lid
940222A0 Non Drip
940221A0 NEEDLE PACKING ASSEMBLY
93810620 Trigger
93008890 Trigger Stud
93505860 E Stopper
96612025 Pattern Adjustment Set
93008420
Pattern Adjustment Knob WS (Blue)
93008140 Torx Countersunk Screw
930812A0 Air Valve Shaft
93001790 Air Valve Seat Set
930789A0 Air Valve
93001690 Air Valve Spring
93001700 Fluid Adjustment Guide Set
93008840 Fluid Needle Spring
93002820
Fluid Adjustment Knob WS (Blue)
93008150 Torx Countersunk Screw
930812A0
NOZZLE & AIR CAP
4
Items
GRAVITY CUP
3
Items
NEEDLE PACKING
1
Item
TRIGGER
3
Items
PATTERN ADJUSTMENT
3
Items
AIR VALVE
8
Items
AIR CAP SET LS-400 BASE
93008030 NOZZLE NEEDLE SET
8 Items
AIR CAP RING LS (Green)
93008330 AIR CAP PACKING SET (2PCS.)
93018310 1.2 ET NOZZLE NEEDLE SET
93008160 1.3 ET NOZZLE NEEDLE SET
93008070 1.4 ET NOZZLE NEEDLE SET
93008180 1.5 ET NOZZLE NEEDLE SET
93008200 1.2 ETS NOZZLE NEEDLE SET
93008230 1.3 ETS NOZZLE NEEDLE SET
93008250 1.4 ETS NOZZLE NEEDLE SET
93008270 1.5 ETS NOZZLE NEEDLE SET
93008290 PC-G600P-2 Gravity Cup
140081A0 Lid
940222A0 Non Drip
940221A0 NEEDLE PACKING ASSEMBLY
93810620 Trigger
93008890 Trigger Stud
93505860 E Stopper
96612025 Pattern Adjustment Set
93008420
Pattern Adjustment Knob LS (Green)
93008820 Torx Countersunk Screw
930812A0 Air Valve Shaft
93001790 Air Valve Seat Set
930789A0 Air Valve
93001690 Air Valve Spring
93001700 Fluid Adjustment Guide Set
93008840 Fluid Needle Spring
93002820
Fluid Adjustment Knob LS (Green)
93008860 Torx Countersunk Screw
930812A0Documents
