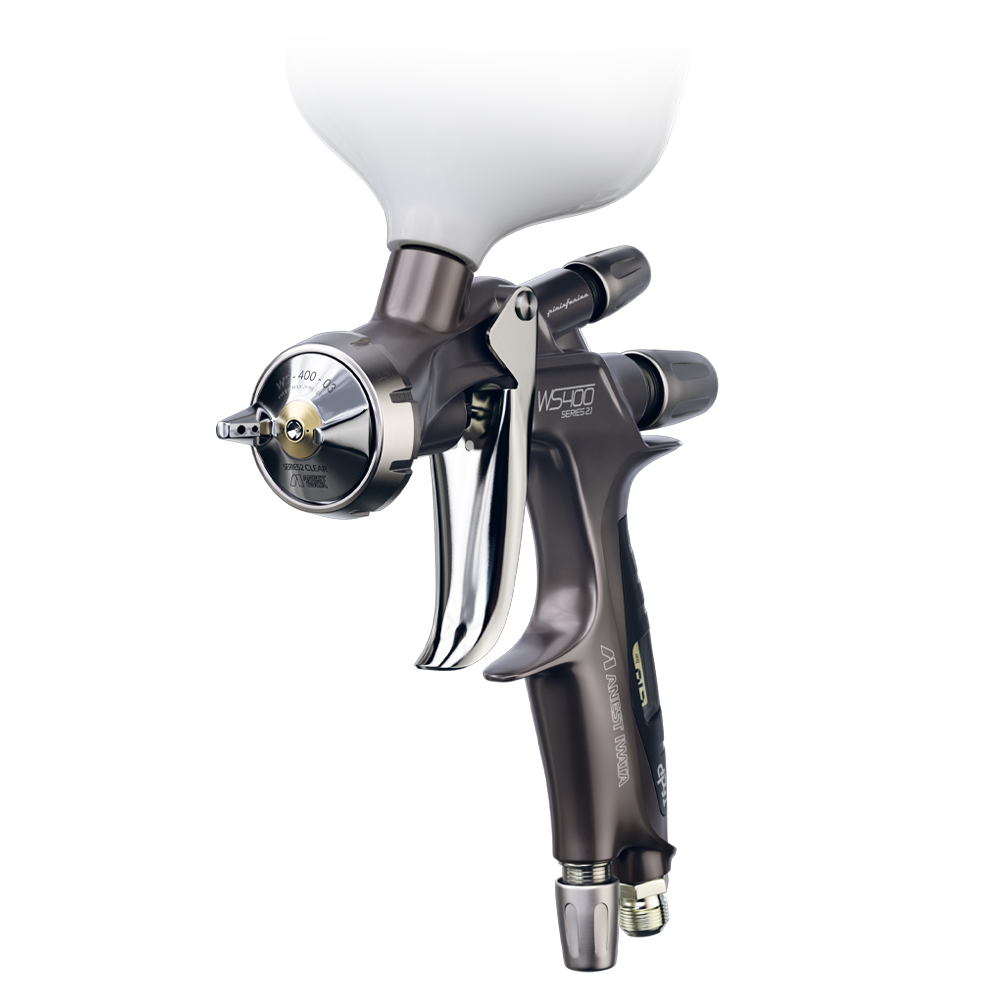

WS-400 SERIES 2.1
Q&A
How does the body finish of the Series 2.1 differ from previous models?
The Series 2.1 features a high-performing premium anodized finish specifically engineered to maximize protection and durability. This advanced finish is designed to better withstand solvents and deliver superior cleanability, setting a new benchmark in strength and endurance even in the most demanding environments.
What makes the Series 2.1 Split Nozzle 2.0 a significant technological leap for coating quality?
The Split Nozzle™ 2.0 is the result of years of development, featuring four precision-cut slits that direct airflow into the material stream to enhance atomisation at its core. Unlike standard nozzles, this technology creates fine and even droplets with a flat, precise fan pattern. This ensures flawless atomisation, perfect color matching, and consistent spray patterns that minimize waste while providing smooth, even coverage.
What are the structural advantages of the Series 2.1 in terms of long-term durability?
Unlike many standard models, the Series 2.1 is engineered to eliminate critical wear points: it features a non-removable airflow baffle that ensures atomisation stability without the need for adjustments, and a Gasketless Dual-Taper Nozzle that ensures a permanent leak-free fit, reducing both the risk of leaks and maintenance costs.
Guides & Tutorials
Check out our tutorials to learn in detail how to install or maintain your
spray gun. We’ll walk you through our step-by-step guides and videos.
USER GUIDES
Unboxing & Set Up
Unboxing
Unpack the spray gun and make sure that the product has not been damaged during transportation and that all the contents are included the packaging.
PRESSURE ADJUSTMENT - DIGITAL
- Turn the knob counter clockwise to increase pressure.
- Turn the knob clockwise to decrease pressure.
PRESSURE ADJUSTMENT - STANDARD
- Fully open the Air Adjustment on the Spray gun.
- While pulling the trigger, use the Air Adjustment of the external pressure regulator to adjust the pressure.
Troubleshooting
Spare parts

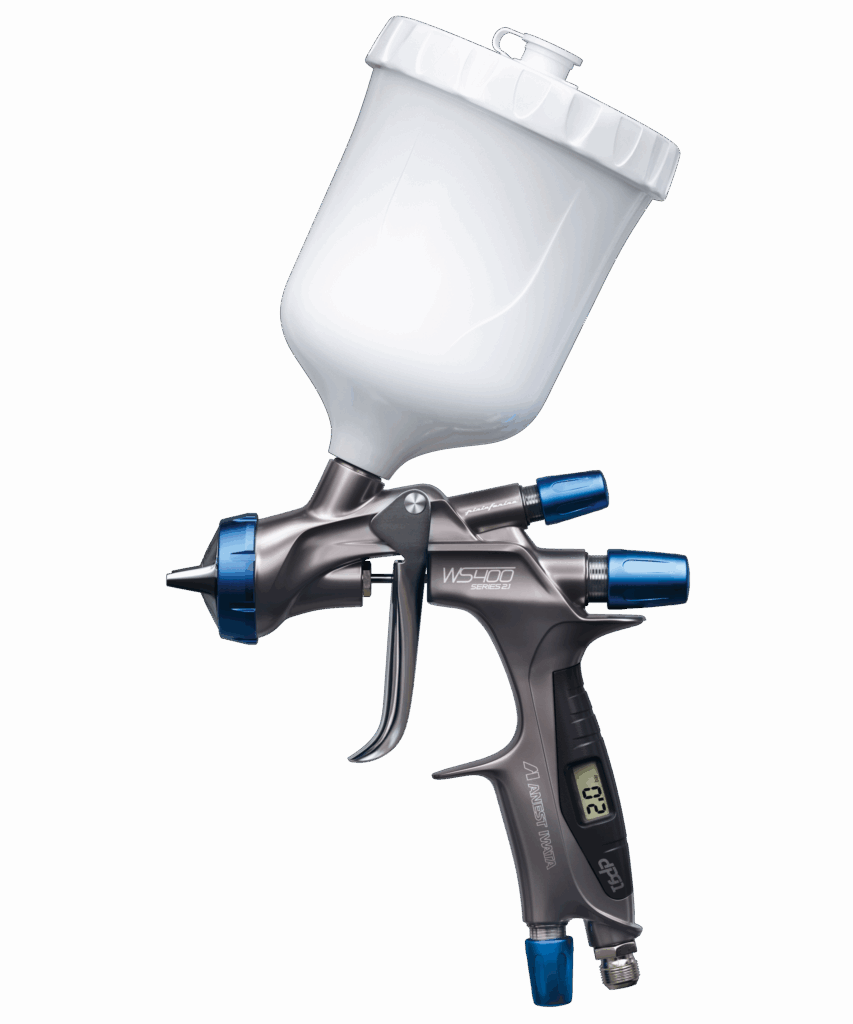

AIR CAP SET WS-400 BASE
2 Items
NOZZLE NEEDLE SET
6 Items
AIR CAP RING BASE (Blue)
93008060
AIR CAP PACKING SET (2PCS.)
93018310 AIR CAP SET OBS
93008310 AIR CAP SET BF
93018140 1.3 OBS-0 NOZZLE NEEDLE SET
93008930 1.3 OBS NOZZLE NEEDLE SET
93008340 1.3 OBS+1 NOZZLE NEEDLE SET
93008990 BF-S NOZZLE NEEDLE SET
93018150 BF-40 NOZZLE NEEDLE SET
93021390 BF-14HD NOZZLE NEEDLE SET
93009160
PC-G600P-2 Gravity Cup
140081A0
Lid
940222A0
Non Drip
940221A0
NEEDLE PACKING ASSEMBLY
93810620
Trigger
93008890
Trigger Stud
93505860
E Stopper
96612025
Pattern Adjustment Set
93008420
Pattern Adjustment Knob WS (Blue)
93008140
Torx Countersunk Screw
930812A0
Air Valve Shaft
93001790
Air Valve Seat Set
930789A0
Air Valve
93001690
Air Valve Spring
93001700
Fluid Adjustment Guide Set
93008840
Fluid Needle Spring
93002820
Fluid Adjustment Knob WS (Blue)
93008150 Torx Countersunk Screw
930812A0
DPG-1 (inkl. Battery & Holder)
930817A0
DPG-1 Battery
930083A0
DPG-1 Battery Holder
930325A0
Air Adjustment Set
93008872 Pattern Adjustment Knob WS (Blue)
93008140 Torx Countersunk Screw
930812A0

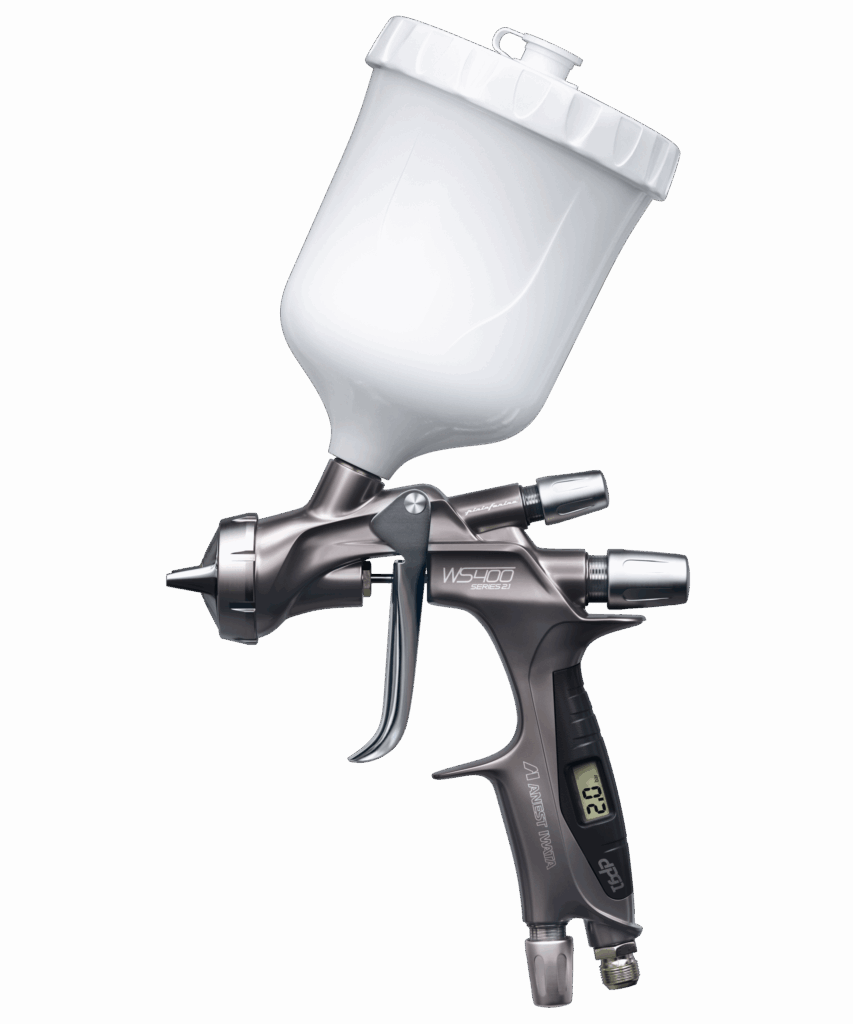

AIR CAP SET WS-400 CLEAR
93009030 NOZZLE NEEDLE SET
4 Items
AIR CAP RING CLEAR
93009050 AIR CAP PACKING SET (2PCS.)
93018310 1.2 HD NOZZLE NEEDLE SET
93009140 1.3 HD NOZZLE NEEDLE SET
93009060 1.4 HD NOZZLE NEEDLE SET
93009160 1.5 HD NOZZLE NEEDLE SET
93009180 PC-G600P-2 Gravity Cup
140081A0 Lid
940222A0 Non Drip
940221A0 NEEDLE PACKING ASSEMBLY
93810620 Trigger
93008890 Trigger Stud
93505860 E Stopper
96612025 Pattern Adjustment Set
93008420
Pattern Adjustment Knob Clear (Grey)
93009120 Torx Countersunk Screw
930812A0 Air Valve Shaft
93001790 Air Valve Seat Set
930789A0 Air Valve
93001690 Air Valve Spring
93001700 Fluid Adjustment Guide Set
93008840 Fluid Needle Spring
93002820
Fluid Adjustment Knob Clear (Grey)
93009130 Torx Countersunk Screw
930812A0 DPG-1 (inkl. Battery & Holder)
930817A0 DPG-1 Battery
930083A0 DPG-1 Battery Holder
930325A0 Air Adjustment Set
93008872 Pattern Adjustment Knob Clear (Grey)
93009120 Torx Countersunk Screw
930812A0

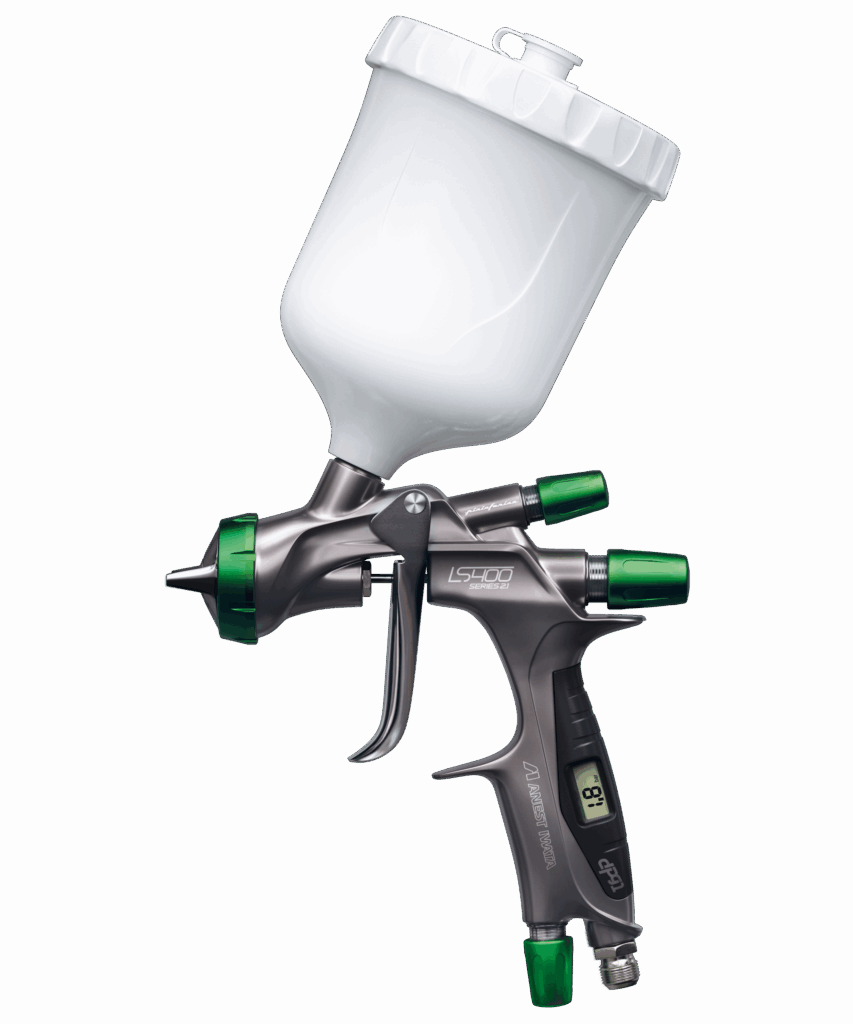

AIR CAP SET LS-400 BASE
93008030 NOZZLE NEEDLE SET
8 Items
AIR CAP RING LS (Green)
93008330 AIR CAP PACKING SET (2PCS.)
93018310 1.2 ET NOZZLE NEEDLE SET
93008160 1.3 ET NOZZLE NEEDLE SET
93008070 1.4 ET NOZZLE NEEDLE SET
93008180 1.5 ET NOZZLE NEEDLE SET
93008200 1.2 ETS NOZZLE NEEDLE SET
93008230 1.3 ETS NOZZLE NEEDLE SET
93008250 1.4 ETS NOZZLE NEEDLE SET
93008270 1.5 ETS NOZZLE NEEDLE SET
93008290 PC-G600P-2 Gravity Cup
140081A0 Lid
940222A0 Non Drip
940221A0 NEEDLE PACKING ASSEMBLY
93810620 Trigger
93008890 Trigger Stud
93505860 E Stopper
96612025 Pattern Adjustment Set
93008420
Pattern Adjustment Knob LS (Green)
93008820 Torx Countersunk Screw
930812A0 Air Valve Shaft
93001790 Air Valve Seat Set
930789A0 Air Valve
93001690 Air Valve Spring
93001700 Fluid Adjustment Guide Set
93008840 Fluid Needle Spring
93002820
Fluid Adjustment Knob LS (Green)
93008860 Torx Countersunk Screw
930812A0 DPG-1 (inkl. Battery & Holder)
930817A0 DPG-1 Battery
930083A0 DPG-1 Battery Holder
930325A0 Air Adjustment Set
93008872 Pattern Adjustment Knob LS (Green)
93008820
