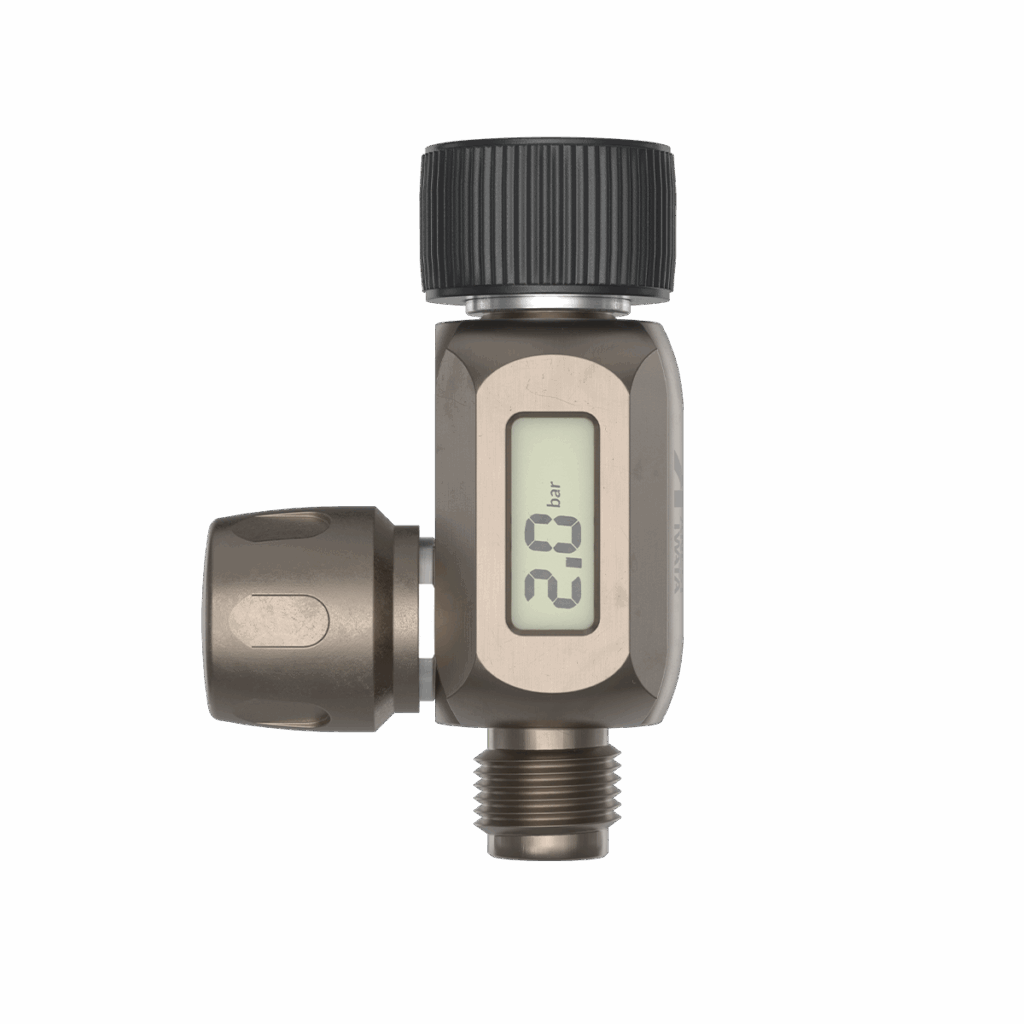

Digital Pressure Gauge
HVC-D
Q&A
How do I install the HVC-D regulator on my spray gun?
Installation is immediate and tool-free. Thanks to the integrated Locking Ring system, you can mount the device manually in seconds, ensuring a seamless and efficient workflow.
Does the weight of the device affect handling during painting?
Not at all. The HVC-D is “weightless by design,” weighing only 70 g (0.154 lbs). Its slim and compact structure integrates perfectly with the spray gun, preserving ergonomics and balance.
Guides & Tutorials
Check out our tutorials to learn in detail how to install or maintain your
spray gun. We’ll walk you through our step-by-step guides and videos.
USER GUIDES
HVC-D User Guide
1

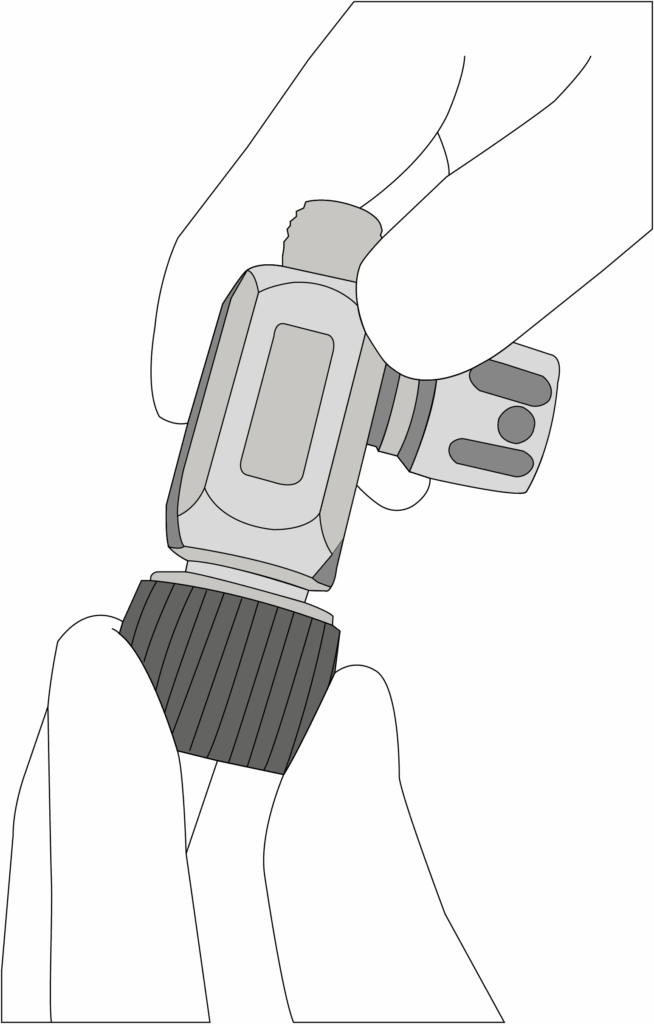

HVC-D ASSEMBLY
- Mount the locking ring on the pressure regulator HVC-D.
- Fit the ring onto the fitting nut.
- Firmly press the ring to snap it into place.
- Connect the HVC-D to the spray gun and to the air supply line.
2

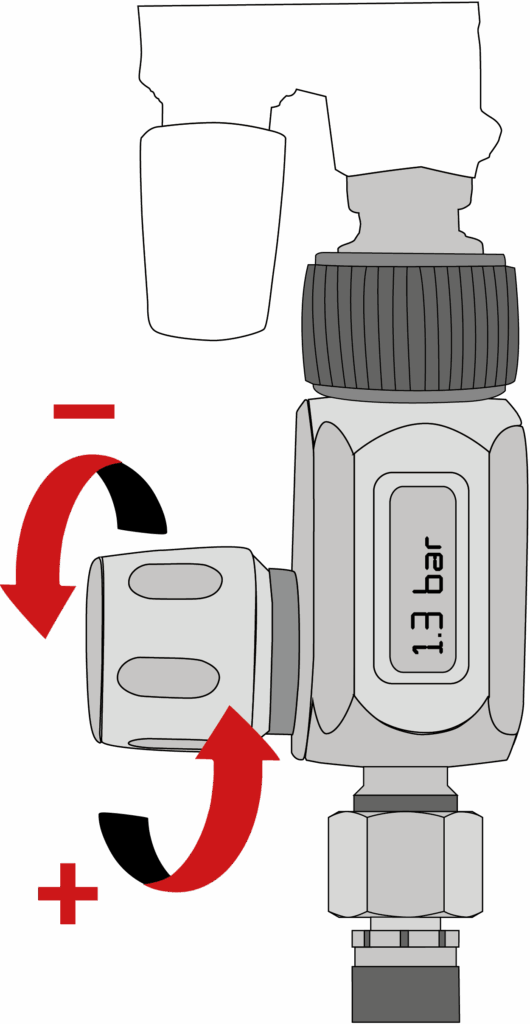

HVC-D SETUP
- Confirm the tight closure of the locking ring.
- The HVC-D activates automatically when the inlet pressure exceeds 0.5 bar.
3

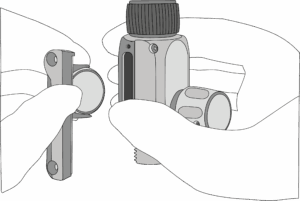

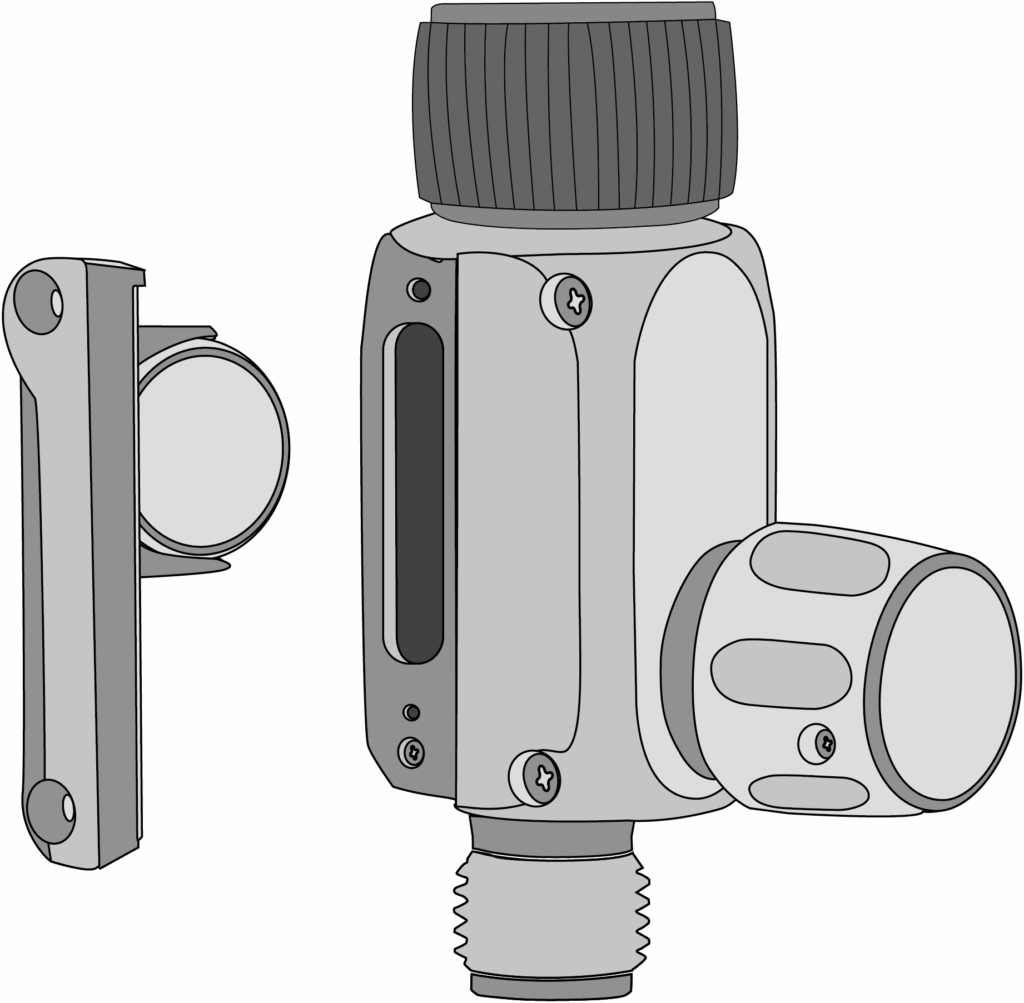

HVC-D REPLACE BATTERY
- Loosen the locking ring to disassemble the HVC-D.
- Detach the HVC-D from the spray gun & from the air hose.
- Uscrew and remove the two screws from the battery housing.
- Pull out the housing cover from the body of the regulator.
- Pull out the exhausted battery from the housing cover.
- Make sure that the gasket is correctly positioned in its seat.
- Replace the battery with a new one.
- Fix the housing cover in the body of the regulator.
- Place the two fixing screw in their seats and thigthen them.
Troubleshooting

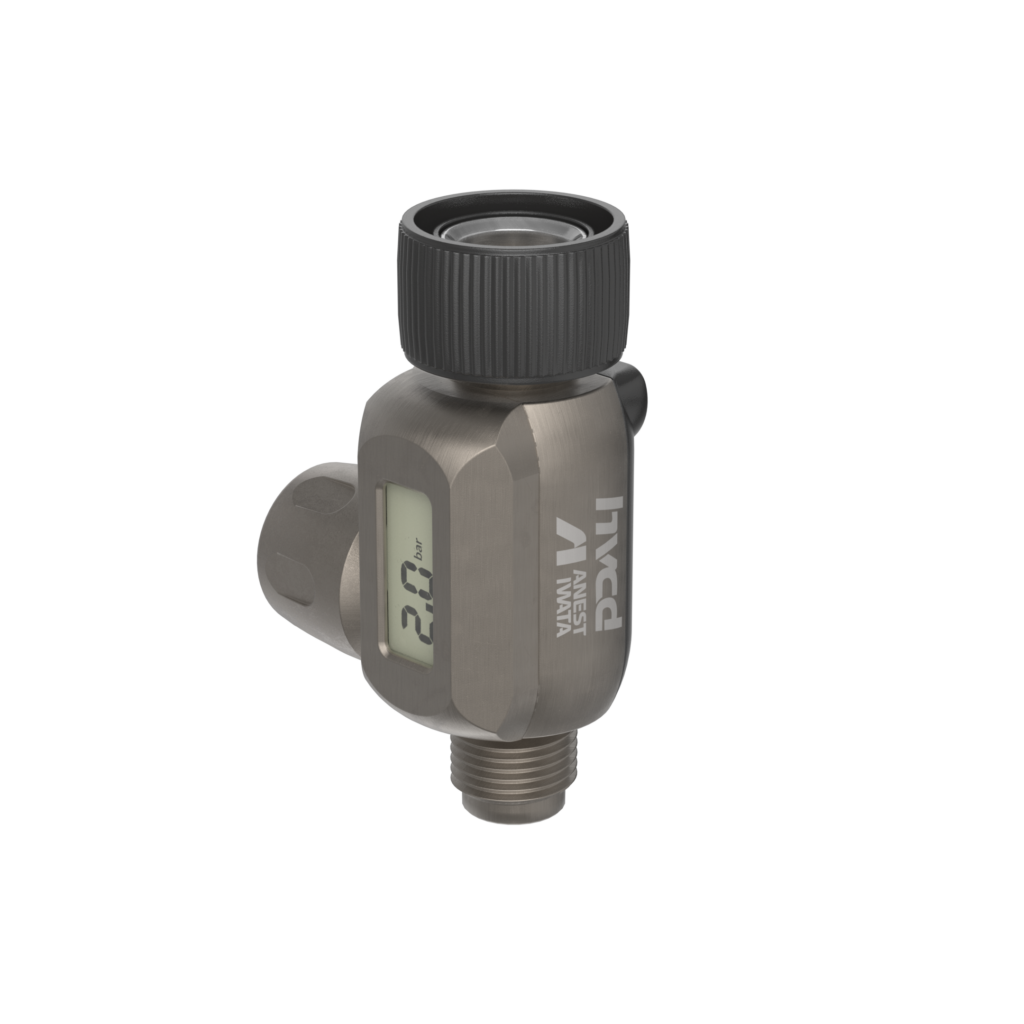

Spare parts
Choose
LOCKING RING
1
Item
Battery Holder
2
Items

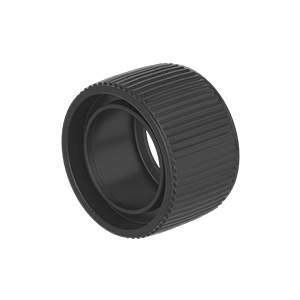

Locking Ring
050186A0

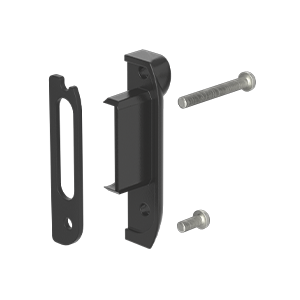

Battery Holder
050215A0
